Xantech® 4K UHD Video Over IP Advanced Control Module

Xantech

Model #:

XT-4K-VIP-ACM

Model #: XT-4K-VIP-ACM
402445
Xantech
$99,999.00

At a Glance

The Xantech Premium Video over IP (VIP) platform distributes HDMI video over a 1GB Network switch using visually lossless technology. The XT-4K-VIP-ACM Advanced Control Module allows advanced third-party control of the system using TCP / IP, RS-232 and IR. The XT-4K-VIP-ACM includes a web interface module for control and configuration of the system and features ‘Drag & Drop’ source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio, and Video. Xantech drivers built into each product’s firmware simplify product installation and negate the need for an understanding of complex network infrastructures.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

Web interface module for configuration and control of the Xantech Video Over IP (VIP) systems

Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status

Advanced signal magagement for independent routing of IR, RS-232, USB, audio and video

Auto system configuration

RS-232 integration for control of VIP system

IR integration for control of VIP system

Powered with PoE (Power over Ethernet) using a PoE Switch

Local 12V power supply (optional) should Ethernet switch not support PoE

Support for IOS and Android App control

3rd Party drivers available for all major home control brands

2x RJ45 LAN connections to bridge existing network to VIP video distribution network, resulting in:

Better system performance as network traffic is separated

No advanced network setup required

Independent IP address per LAN connection

Allows simlified TCP / IP control of VIP system

Useful Documents
Specification Sheet
Quick Reference Guide
Specifications

Shipping Information

Length6.4 (Inches)
Width4.8 (Inches)
Height1.9 (Inches)
Weight1.9 (Inches)
Unit of MeasureEach

General

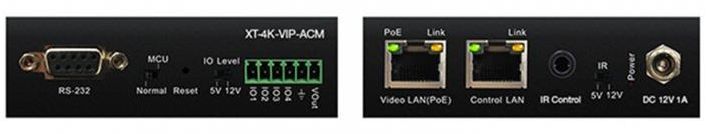

Control Ethernet port1 x LAN RJ45 connector
Video Ethernet port1 x LAN RJ45 connector (1x PoE support 9W)
RS-232 serial port1 x DB-9, female
I/O port1 x 6-pin Phoenix connector (reserved for future use)
IR control port1 x 3.5mm stereo jack
Dimensions (W x D x H )96mm x 110mm x 26mm
Shipping weight (Kit)0.6kg
Operating temperature32°F to 104°F (0°C to 40°C)
Storage temperature-4°F to 140°F (-20°C to 60°C)
