Product Overview
Standalone Battery Backup
SurgeX Standalone UPS backup solutions deliver clean continuous power, via online double conversion technology, to ensure the safe shutdown of equipment in the event of an outage. All incoming power is converted from AC to DC and then back to AC. If the main power is interrupted, the batteries are still holding up the incoming DC supply to the inverter, so the load continues to be supplied with absolutely no interruption whatsoever. The zero transfer time guarantees mission critical equipment remains up and running.
Online double conversion technology
True sinewave output
Controllable receptacles
Hot swappable battery
Configurable as tower or 48.26cm rack
Intuitive LCD screen
Optional SNMP card to monitor and manage the UPS via the network
The UPS Standalone solutions are available in 2000, 3000, and 6000 VA configurations with hot swappable internal batteries to ensure maintenance can be performed without powering down connected equipment. All three UPS power supply solutions have extended scalable runtimes of up to 8 hours via self-charging extended battery packs.

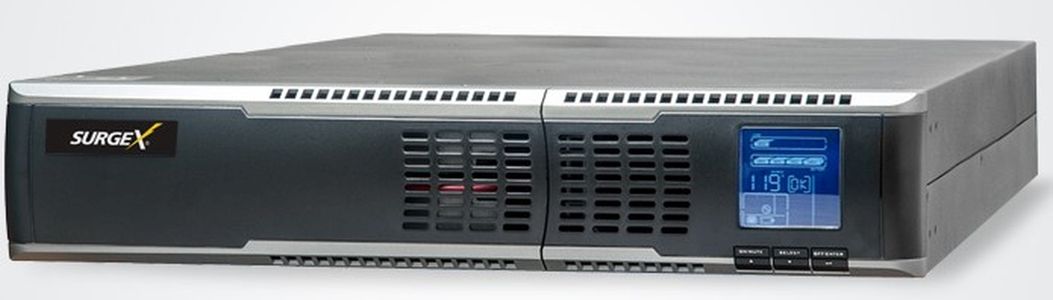

The UPS-17202-53R shall be a two-rack-space unit in a magnetic shielding steel enclosure. It shall operate from 240 volts AC and have an IEC C20 input for the cord. There shall be 8 grounded IEC320-C13 AC receptacles on the back panel, 4 of which are programmable. Overall dimensions shall be 438 mm W x 513 mm D x 86 mm H. Weight shall be 27.22 kg. The UPS-17202-53R shall have a total combined load rating of 9.6 amps at 240 volts, with up to 1800W/2000VA available at the outlets. The unit shall have an LCD, over voltage shutdown, under voltage shutdown, and no transfer time. It shall have monitoring and control functions via wired USB and optional SNMP card.
