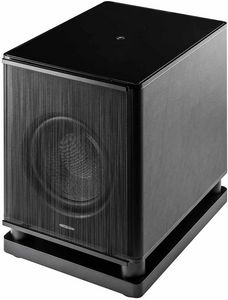

Sonus faber® Gravis VI 12" Piano Black Subwoofer


Model #:

SBWU11BFI

Model #: SBWU11BFI
1327826
Sonus faber
$99,999.00

At a Glance

Product Dimensions 24.2"h x 17.6"w x 23"d

Strength and design at the highest level. The Gravis III, V and VI are the most powerful active subwoofers Sonus faber has ever designed in order to optimize the dynamic impact and the sonic reproduction depth.Read More

Call for Best Price

Color Finish Name:Piano Black

Related items:

Get to know this product.

Product Overview

Product Overview
Blast From The Past

Sonus faber is not new to the arena of subwoofer design and engineering. The first subwoofer project, the Gravis FB100, was launched back in 1986, ten years later was born Sonus faber Cremona M. Today, with the new Gravis Collection, Sonus faber returns to its roots, merging a ever increasing cutting-edge technology while maintaining its identity of natural sound and quality Italian hand-craftsmanship.

Refinement And Elegance

The Gravis III, V and VI subwoofers, the most powerful and high-end models of the active systems line, have been designed to be the perfect complement to all the loudspeakers collections that marked the history of Sonus faber. Aesthetically connected by the body enriched by a black leather covering, they differ from each other by the finishes of the hand-finished wooden top.

All-Round Collection

Gravis collection, the active subwoofers line dedicated to the reproduction of low frequency, is able to match all Sonus faber full-range loudspeakers collections. Gravis III naturally fits in with Olympica Nova collection, while Gravis V and VI represent the perfect choice to those who want to complete Homage Tradition and Reference collections.

Speaker Unit

Gravis III features a 10” (250mm) ultra-long throw driver while Gravis V and VI have a powerful long stroke 12” (305mm) design. Drivers of all three models include a Trilaminated sandwich cone diaphragm with a layer of honeycomb in between, managing the driver’s excursion and resistance flexing even with under strongest signal.

Wooden Top

Gravis V and VI are enriched by the hand-finished wooden top available in the iconic finishes of Homage Tradition and Reference collections, Red and Wengè. 14 layers of lacquering make these creations precious just as musical instruments.

Dedicated App

The Gravis III, V and VI are fully controllable by means of a dedicated, user-friendly app, available for iOS and Android system that makes the subwoofers simple to configure and use. The goal is always the same: a perfect sound reproduction.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)114.6
Depth (in.)23
Width (in.)17.6
Height (in.)24.2
Crossover TypeActive
Speaker TypePowered Subwoofers
Voltage100-120, 220-240
Amplifier Output (Watts)1700
CollectionGravis
Color Finish NamePiano Black
Smart CompatibleYes
Peak Power Rating (Watts)2400
Subwoofer Size12"

Technical Specifications

SystemSealed box loading, twin drivers, active subwoofer
Speakers2 x 320 mm (12”), long throw, sandwich honeycomb cone, wide rubber surround LF unit
Frequency Response18 Hz (@- 6dB, acoustic Linkwitz 4th order roll-on, default setting) to Fc (user continuously adjustable)
FuseT12A H250V (100-120 VAC – 50/60 Hz), T6.3A H250V (220-240 VAC – 50/60 Hz)
ControlsDirect access Master volume; APP control featuring: 4 selectable presets, volume, continuously adjustable crossover frequency (40 to 150 Hz , filtering slope 24 dB/oct); continuously adjustable signal phase (0° to 360°); up to 8 parametric EQ filters , Delay (1 to 20 ms); automatic room calibration ; selectable threshold auto power on/off
Audio Signal Inputs2 x Line (unbalanced), Left and Right/LFE - RCA plugs 2 x Line (balanced), Left and Right/LFE - XLR plugs High Level - Neutrik 4-pole Speakon© plug
