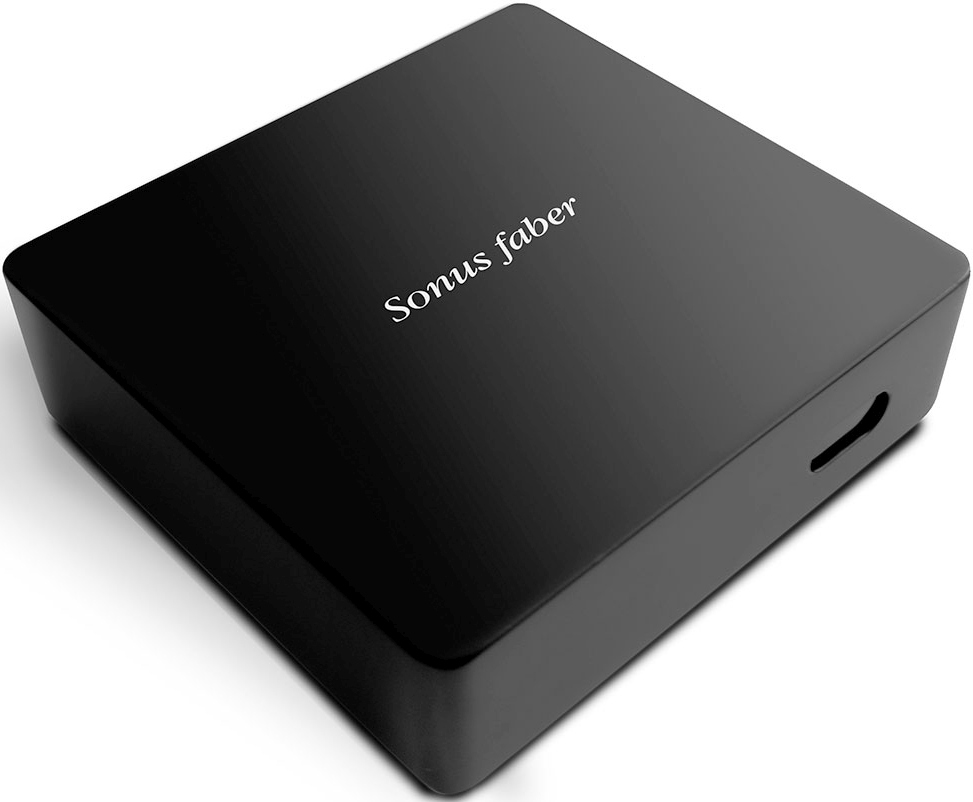

Designed by Sonus faber to transmit the signal in wireless mode to Gravis III, V & VI subwoofers, with maximum versatility and discretion. Sonus faber is a designer and manufacturer of high-end audio equipment.

Sonus faber® Black Matte Wireless Transmitter

To use during the installation procedure. Hold down - usually for approx. 5 seconds - until the LED starts to flash. When this occurs, press - within maximum 30 seconds - the corresponding pairing button on the subwoofer panel with integrated receiver. The radio contact will be established when the LEDs stop flashing and become fixed. The LED switches off a few moments later, once the connection is activated.

If fixed light, it indicates that the unit is powered and paired with the receiver. The LED flashes during the pairing procedure or if the radio connection is not yet established.

The use of an RCA cable (mono or stereo) allows the Transmitter to be connected to the line output of a stereo amplifier, an audio-video player (DVD, Blu-ray, etc.) or a home theatre controller /pre-amplifier, etc.

General Specs
Product Weight (lbs.)	0.45
Depth (in.)	4.1
Width (in.)	1.1
Height (in.)	4.3
Compatibility	Gravis III, Gravis V, Gravis VI
Voltage	7.5
Maximum Operating Range	3.28
Color Finish Name	Black Matte
Technical Specifications
INput Impedance	10k Ω
Power Consumption	<0.5 W
Supplied Accessories	User manual, AC-DC power adapter (7.5 vdc)
