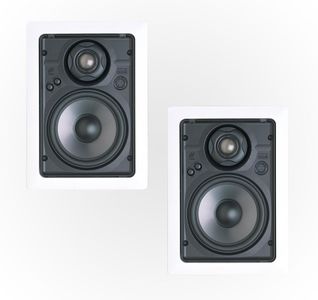

Niles® HD5R In-Wall High-Definition Loudspeaker

Product Overview

Pivoting Ratcheting Tweeter

Enable installers to precisely adjust the angle of the tweeter for optimum coverage

Advanced Material Science

Elevates performance of sub component parts like woofer cones, tweeter diaphragms and crossover components

Sophisticated Motor and Magnetic Design

Including vented pole pieces and High BL magnets for deep bass response

Impedance Management

Selectable 4 ohm or 8 ohm impedance lets installers optimize the system design

Acoustic Fine Tuning

Bass and treble controls optimize system sound for every acoustical environment

Anti-Resonant Wave-Bracing Technology

Prevents transmission of woofer vibrations to the baffle and into the drywall for clear and dynamic bass response

Additional Features

High BL magnet structure with vented pole piece

1 inch Teteron tri-laminate tweeter housed in a precision adjustment mechanism

Custom perforated speaker baskets protect woofer from construction debris

Molded ABS baffle with anti-resonant wave bracing

BumpBack(TM) magnet for increased throw

Front-mounted bass and treble controls

Moisture-resistant construction

IR sensor knockout

Snap-in baffle assembly

Two-piece, no strip speaker terminal

Depth behind the wall: 3-5/8 inch deep (assumes 1/2 inch drywall) Frame/Grille

100% aluminum grilles will not rust

Color-matched frame/grille

Microperf grill hides speaker components from view

Frame mates with a bracket to securely clamp sheetrock Bracket

Includes Quicksnap new construction wings

Scored wings for flexible placement between studs

Extra thin wings minimize sheetrock bulge

Four wire ties prevent losing wires in walls
