Leon® Detail Series 3" On-Wall Surround Speaker


Model #:

Ds33

Model #: Ds33
137448
Leon
$600.00

At a Glance

Product Dimensions 8.5"h x 5"w x 3"d

Leon’s on-wall rear channel surround speakers are handcrafted from solid 1” MDF. With two models available, as thin as only 2” deep, they provide an excellent alternative to in-wall speakers, allowing for easy installation, better stereo imaging, and enhanced sonic clarity.Read More

Visit Store For Details
$600.00

Get to know this product.

Product Overview

Product Overview

Leon’s on-wall rear channel surround speakers are handcrafted from solid 1” MDF. With two models available, as thin as only 2” deep, they provide an excellent alternative to in-wall speakers, allowing for easy installation, better stereo imaging, and enhanced sonic clarity. The Detail Ds33 and Ds33UX surrounds perfectly complement the Horizon Hz33 and Profile Pr33 Series speakers.

  • Sonically-matched rear surrounds complement Horizon Hz33, Hz33UX, Profile 33 & Profile Pr33UX Series speakers
  • Can be built to any dimension to fit into custom cabinetry or niche
  • Sleek designs, as thin as 2” deep, allows for unobtrusive on-wall installation
  • Can be custom painted or built with beautiful hardwood cabinets
  • Available with Leon’s exclusive FlexMount™ articulating bracket for perfect stereo imaging
  • Solid MDF construction, handcrafted in the USA

Specifications

  • Material: MDF enclosure
  • Finish: Black, white or any custom finish
  • Grill: Standard woven fabric
  • Connections: Spring-loaded terminals
  • Components: 3? woofers; 1? tweeters
  • Impedance: 6O
  • Recommended Power: 50-150W
  • Max. Output: 98dB avg, 104dB peak
  • Coverage: Vert: 110°, Hor: 140°
  • Frequency Response: 125–20kHz
  • Sensitivity: 85dB @ 2.83V/1m
  • Mounting: DsFMB, FLSH, DsTTS

Dimensions

  • Depth without grill: 2.75”

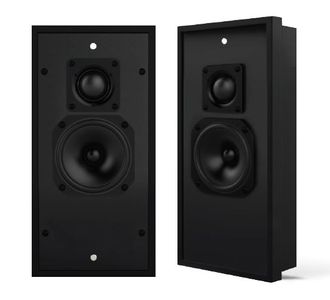

*Image available shown with both Ds33 and Ds33UX speakers; both are sold separately.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)10
RMS Power Handling (Watts)100
Impedance6 ohms
Maximum Power Handling (Watts)100W
Speaker TypeSurround Speakers
Depth (in.)3
Height (in.)8.5
Width (in.)5
Woofer Size3"

Connections

Connector Type:Spring-Loaded Terminals

Specifications

Speaker Output Power:104 dB
Sensitivity:85dB @ 2.83V/1m
