8x8 HDBaseT AV Matrix - 100m (4K @ 60 up to 70m), Bi-directional IR, PoH (PoE), Simultaneous HDMI Outputs, Audio Breakout, ARC enabled (2 x HDBaseT Input), Line Level Volume Control, Web GUI.
Up to 24x16 Audio Matrix independently controllable from video:
- 8x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT/HDMI outputs
- HDMI audio breakout to Coaxial digital and analog L/R audio outputs with variable pre-amp line level control
- Supports ARC (Audio Return Channel) via HDMI or Optical digital inputs from compatible EL-4KHDBT-RX-70-E-ARC-IRS receivers
Key Features
- Advanced HDBaseT technology offering uncompressed video and audio with zero latency
- Features 8x HDMI inputs which can be independently routed to 8x HDBaseT + HDMI outputs
- Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
- Inputs 1 & 2 support dual HDBaseT & HDMI to enable integration of remote HDMI sources up to 1080p 70m distance (4K up to 40m)
- Extends HDMI up to distance of 100m over single CAT cable
- Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Integrated Ethernet switch (LAN Serving) when used with EL-4KHDBT-RX-70-E-ARC-IRS (sold separately). EL-4KHDBT-RX-70-E-ARC-IRS features a 3 port 10/100 Ethernet switch
- Web interface module for control and configuration of Matrix
- Bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)
- Bi-directional IR from all input and output locations
- Includes 8 x 5v-to-12v IR converter cables for IR Input and 2 RS-232 control cables
- Control of Matrix via front panel, IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT) to power compatible HDBaseT transmitters & receivers
- 3rd Party drivers available for all major home control brands
- Advanced EDID management HDCP 2.2 compliant
- 2U Design for 19" rack mount integration - Mounting kit included

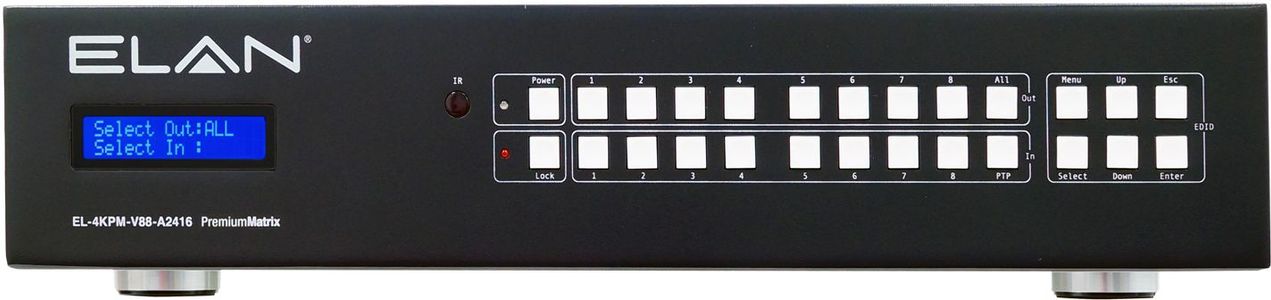

The ELAN Premium HDMI Audio/Video Matrices delivers a range of industry leading features. The EL-4KPM-V88-A2416 is a 4K HDCP 2.2 compliant 8x8 video matrix, transmitting HDMI, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable. The matrix also provides a 24x16 audio matrix with advanced features; including independent audio routing, Audio Return Channel (ARC), simultaneous HDBaseT/HDMI outputs, two HDBaseT inputs, LAN Serving and RS-232 pass through to enable seamless 3rd party control integration. The matrix can be controlled and configured using the built-in web interface module or ELAN Configuration Software, allowing the user to define audio channels, designate EDID presets and insert audio delays on outputs to correct any lip-sync issues within the system.
