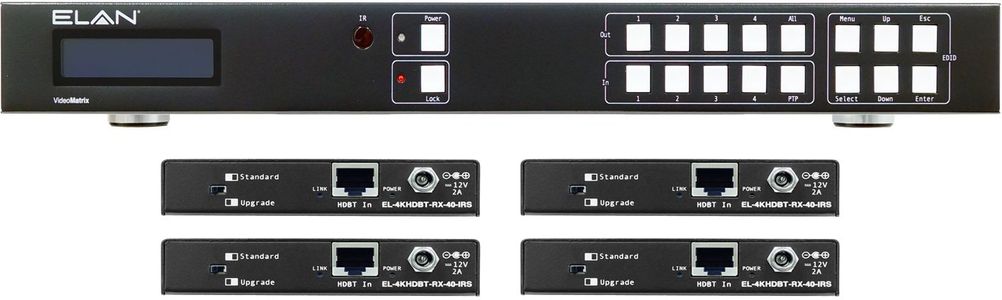

ELAN® 4x4 HDBaseT Matrix Kit

4x4 HDBaseT Matrix Kit - 70m (4K @60 up to 40m), HDCP 2.2, Bi-directional IR, PoH (PoE), Simultaneous HDMI Outputs, Audio Breakout, RS-232 & IP Control, Web GUI.

• Features 4x HDMI inputs which can be independently routed to 4x HDBaseT/HDMI outputs
• Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
• HDMI audio breakout to associated analog L/R audio outputs with pre-amp line level control
• Extends HDMI 1080p up to a distance of 70m over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Bi-directional IR from all input and output locations
• Bi-directional RS-232 from all input and output locations
• Includes 4 x 5v-to-12v IR converter cables for IR Inputs
• Control via front panel , IR, RS-232 and TCP/IP
• Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
• 3rd Party drivers available for all major home control brands
• Advanced EDID management HDCP 2.2 compliant
• Kit includes 4 x EL-4KHDBT-RX-IRS HDBaseT Receivers
• 1U Design for 19" rack mount integration - Mounting kit included

The ELAN HDMI Video Matrices offer unprecedented performance and value for the custom installation market. The EL-4KM-V44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including point-to-point Audio breakout with pre-amp variable line-level control, simultaneous HDBaseT/HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix. The matrix is easily configured and added to your ELAN projects using ELAN's Configuration Software. The EL-4KM-V44-KIT is supplied with 4 x EL-4KHDBT-RX-IRS Receivers.

Connections

• EL-4KM-V44 - HDMI Input x 4; HDMI Output x 3; TCP/IP; HDBT Output x 4; RS-232
• EL-4KHDBT-RX-IRS - RS-232; HDMI Out
